SQ Lab Bottle cage adapter for 613R

  • - Click to enlarge
  • - Click to enlarge
  • - Click to enlarge
  • - Click to enlarge
  • - Click to enlarge
  • - Click to enlarge
SQ Lab Bottle cage adapter for 613R

Tap for gallery

R1,049.00

Product Information
Specification




Aerodynamic

The bottle mount is tilted in riding direction. The orientation of the bottle, explicitly allows to pull it out of the mount more ergonomically. The aerodynamic position can be maintained while grasping the bottle. This enables intuitive handling and clearly distracts less from the racing or riding happenings.




Compatible with
613 R ERGOWAVE®

Saddle 613 R ERGOWAVE® Carbon

Saddle 613 R ERGOWAVE®




Technical specifications at a glance
AREA OF USE
TRIATHLON

WEIGHT (G)
39G INCL. SCREWS AND WASHERS

COLOUR
BLACK ANODIZED

MATERIAL
ALUMINIUM
Description at a glance

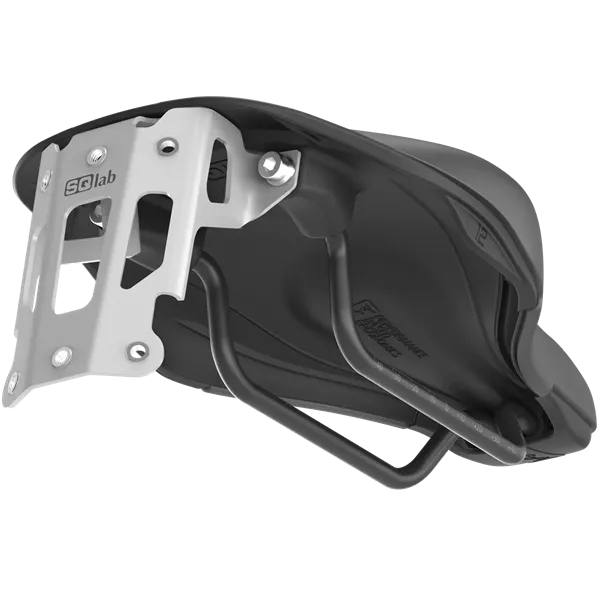

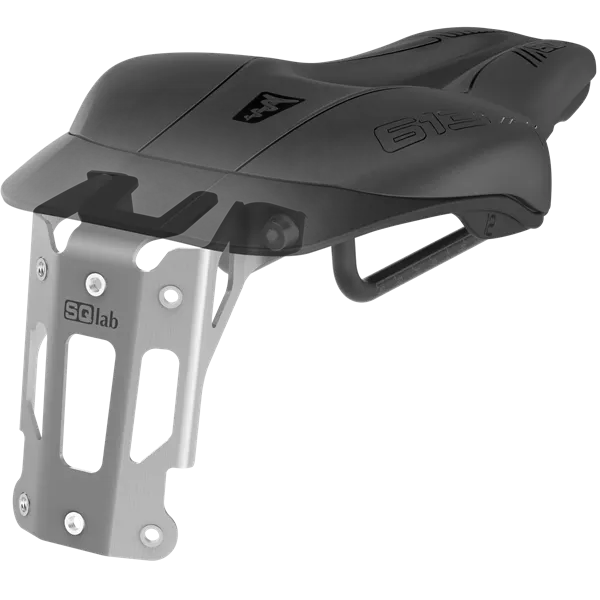

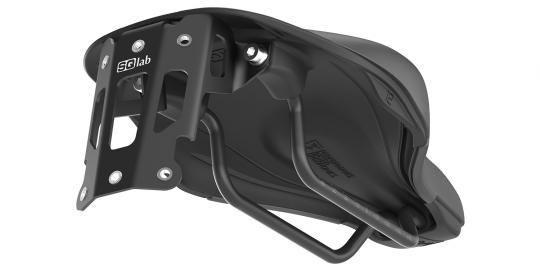

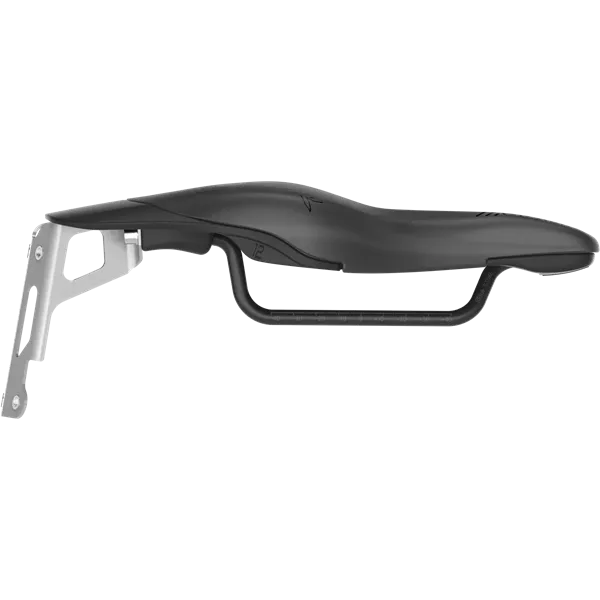

The 613 R ERGOWAVE®  integrated bottle adapter allows the mounting of bottle cages on the saddle. The bottle mount is tilted in riding direction. The orientation of the bottle, explicitly allows to pull it out of the mount more ergonomically. The aerodynamic position can be maintained while grasping the bottle. This enables intuitive handling and clearly distracts less from the racing or riding happenings.

  • holds up to 2 bottle cages / bottles max
  •  fits SQlab 613 R Ergowave® saddle only
  •  Hole spacing: 64mm standard, compatible for every bottle cage
  • max. Load: 1,5 kg





Scope of supply: Bottle cage bracket, mounting accessories enclosed. Does not include saddle and bottle cage.

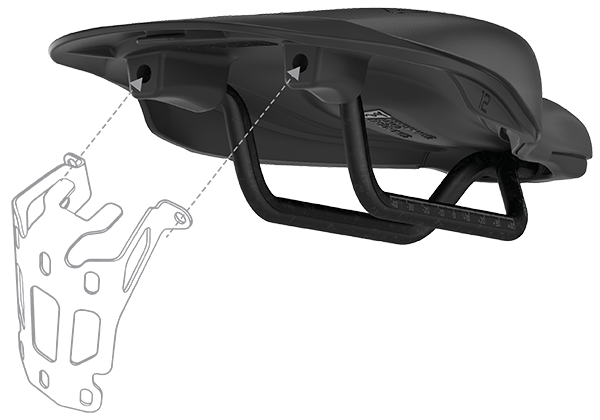

Assembly instruction: Push the flat tip, which can be found at the top centre of the adapter, into the groove provided for this purpose on your 613 R ERGOWAVE® . Now screw the two screws supplied (M5 x 25) into the thread located behind the connection of the rails to the saddle shell.

Product CodeSQ LP1I446
ManufacturerSQ Lab
ConditionNew
