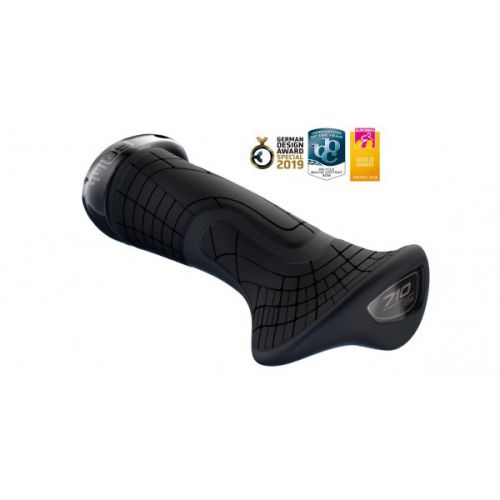

SQ-Lab 710 Grips

Tap for gallery


Product Information

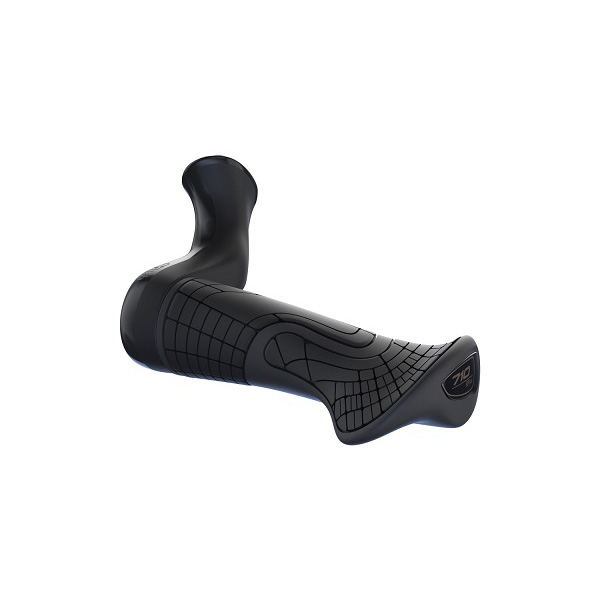

(Innerbarends in picture not included, please find them here )

VSF certified - Best ergonomics

"The shape and size concept of SQlab offers an outstanding selection of different grips for every application. The ergonomic shape effectively supports the hands, the unusual grip edge provides "grip" and more secure. All models are available in three sizes, which differ in diameter, length and shape." VSF

The perfect gripsize

The personal grip size is important.

Grip size is the measurement from the tip of the middle finger to the crook of the thumb. This is because the fingers grasp the grip precisely by this measurement.

In the new SQlab grip series, sizes differ in range, length (only the 702,710) and shape.


Sizes & Weights



(total in mm)


(measured at 1/3 of the total length)


(in g)

SQlab 702S139,1108,0215
SQlab 702M143,6110,8225
SQlab 702L145,8123,7255
SQlab 710S136,8102,6165
SQlab 710M139,1106,0180
SQlab 710L145,0115,2205

* The grip circumferences is measured in the first third. This corresponds to the position of the middle finger.

Hand edge

Grips 702 and 710 are higher on the inside than on the outside, which matches the natural position of the hand.

This provides excellent relief to the ulnar nerve and, above all, the carpal tunnel pass with the median nerve. In addition, the outer edge of the hand is often insensitive, as karate fighters often demonstrate impressively.


The raised grip end picks up the side of the hand and supports the hand. As a result, pressure is distributed across a large area.


+ surface

+ comfort

+ grip secure

round grip

round grip


The round grip sounds comfortable, but gives only a small contact surface.


grip with wings

grip with wings


A grip with wings reduces pressure yet security is limited.


flattened ellipse

flattened ellipse


The flattened ellipse enlarges surface significantly.


SQlab grip concept

SQlab grip concept


Flattend at the top and drawn forward and back for pressure relief and comfort. Surface is optimized for support and fingers can encompass the grip.



pressure = force/area


low contact area = high pressure low contact area = high pressure

large contact area = low pressurelarge contact area = low pressure

Pressure measurement at the SQlaboratory


Pressure measurements are carried out with an electronic pressure measuring foil/mat. We have been using pressure measurement since 15 years in the saddle development.

Together with a manufacturer of pressure sensors, we were now able to further develop the system and make it flexible enough to be able to wrap the printing mat around the grip. Some of our premium dealer partners also use our pressure measuring system in the consultation.


Base - round grip

Base - round grip


The extremely high pressure on the outside causes irritation of the ulnar nerve.

The consequences are pressure pains and numbness on the little finger and ring finger.


SQlab 702

SQlab 702


The pressure on the outside is clarified in green area. The pressure at the point of the carpal tunnel exit is less than 40 % of the maximum pressure on the outside of the hand.


Grip XY with a wing

Grip XY with a wing


The pressure on the outside is still in the green area. The pressure at the site of the carpal tunnel exit is approximately 80 % of the highest pressure.







Overall, the pressure of the new 702 and 710 is distributed over a very large area. Accordingly, the maximum pressure is about 25 % lower than comparable ergonomic grips. At the point of the carpal tunnel exit the pressure at the 702 could be reduced to less than the half.


SQlab 710

SQlab 710


The pressure on the outside is slightly higher than of the 702 but still in the green range.The pressure at the point of the carpal tunnel exit is only about 30% of the maximum pressure on the outside of the hand. Both nerves are sufficiently relieved.


MTB grip ZX! with a wing

MTB grip  ZX! with a wing


The hard, stiff wing reduces the pressure only slightly compared to a round handle and additionally distributes it unfavorably to the carpal tunnel exit.


Relief through 710

Relief of the carpaltunnel pressure

The unloading wing must be placed as far outside as possible to keep the carpal tunnel exit largely free and reduce the pressure. Already easy, but constantly recurring pressure, over a long period of time, can lead to problems such as a Carpal Tunnel Syndrome.


Relief of the ulnarnerve pressure

The measurements show that the maximum pressure usually occurs on the outside of the palm of the hand. At this point the ulnar nerve, which supplies the two little fingers, disappears.



A kink in the wrist especially a laterally overstretched wrist can narrow the carpal tunnel. Similar to a kinked garden hose, through which no more water flows, the nerve information can no longer be transported through the narrowed carpal tunnel.

This problem only occurs in healthy people when the joint goes to “block”. The cause is almost always a handlebar with too little bending to the rear.



Our grips are not medical devices. We can not promise, that the handles cure your discomfort. So the important thing is, that you listen to your body and try to change something if you have problems like this. Additionally ask your doctor for advice or please feel free to contact us directly.



Numbness feelings



Ring finger, little Finger

The cause is too high pressure on the outside. Here runs the ulnar nerve.

Index finger, middle finger, thumb


1. cause is a lateral, overstreched wrist, or a kink. This is usually caused by a too straight handlebar, with too little bending to the rear.


2. cause is too high pressure on the carpal tunnel exit, often caused by relieving wings, which relieve the ulnar nerve, but under unfavorable circumstances load the median nerve.

Secure grip

Secure grip comes first.


Security comes before comfort. Thanks to our size system, the external wing and the Ergobar, you can always fully grasp the grip. The non-slip surface structure and the premium material are pleasant to grab and simultaneously provide a secure hold. The relief wing is at the outer edge on the 702 and 710, making it easy to provide support and a secure grip. You will appreciate this interface during your complete riding experience but will become even more evident the next time you need to brake hard.

Secure grip
Angular and two-dimensional


Handlebars are round, and grips are also mostly round because it is simple. But fingers are anything but round: They easily slip on a round object and cannot hold on unlike, for instance, a flat table corner.

round = no grip possibleround = no grip possible

angular & two-dimensional = grip is possibleangular & two-dimensional = grip is possible


The grip offers a very relaxed touch point while simultaneously giving you the feeling of complete control.


The Ergobar is a wave-shaped profile on the front and right side, which produces a flat, slightly angular grip bottom. A perfect fit for angular, bent fingers.

Comfort upgrade

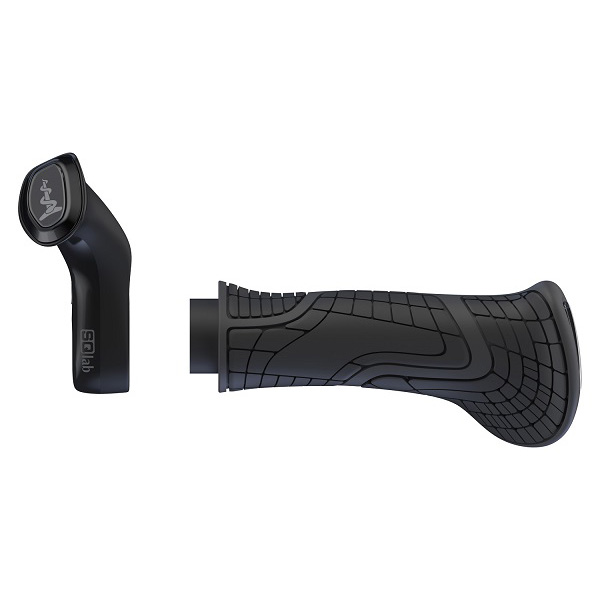

Existing 710 and 702 handles can easily be upgraded with Innerbarends® 410/402. One part saved and a clean transition from the grip to the Innerbarend. Comfortable. Aerodynamic. Inside.

The combination of secure grip and comfort was the focus of development of the 710. The preferred area of use is a comfort-oriented mountain bike or a sporty trekking bike. Due to the perfect fit, the bicycle grips cut a good figure in both areas. The scope of delivery includes a set of grips.
This relief wing, which is located at the very edge and deeply extends downwards, frees up space for securely grasping the grip body in all situations. The raised grip end picks up the side of the hand and supports the hand. The inside’s level is higher and thus secures the natural position of the hand. Hence it specifically relieves the ulnar nerve, the median nerve and the carpal tunnel pass.
The Ergobar offers a secure grip for the fingers and optimum support on the front and bottom with a wave-like elevation.
The clamp moved from the outside to the inside in the course of the product development. This increases the shock absorption and comfort on the hand’s outer side. Thus, the SQlab grip series is no longer compatible with twist grips.
Various rubber compounds ensure a perfect grip level and high comfort. We only use the best possible materials. This guarantees you a long service life and no sticking of the grip rubber.
The personal grip size is what matters. With the 710 grip, the sizes differ in diameter, length and shape.
Link to size template (if you print please make sure your setting is on actual size and noton fit to page.

Product Code711CXTC574
ManufacturerSQ Lab
