Recommended sitting position for this saddle:

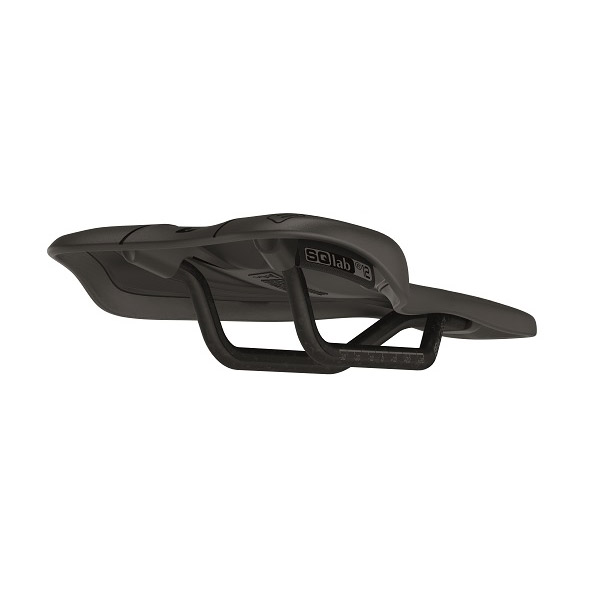

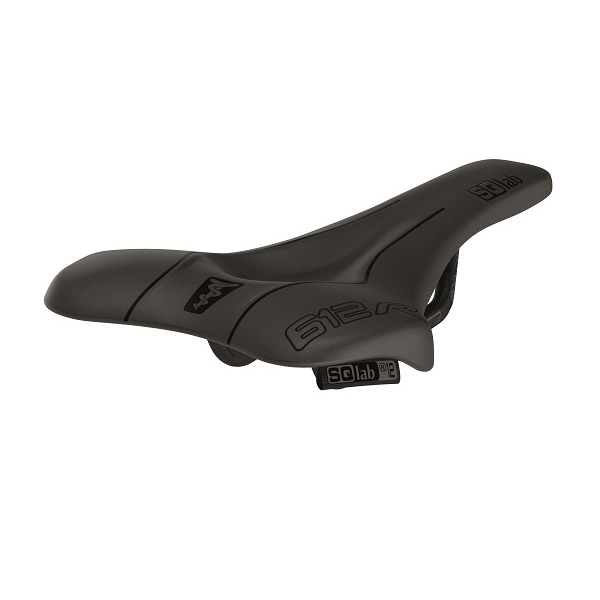

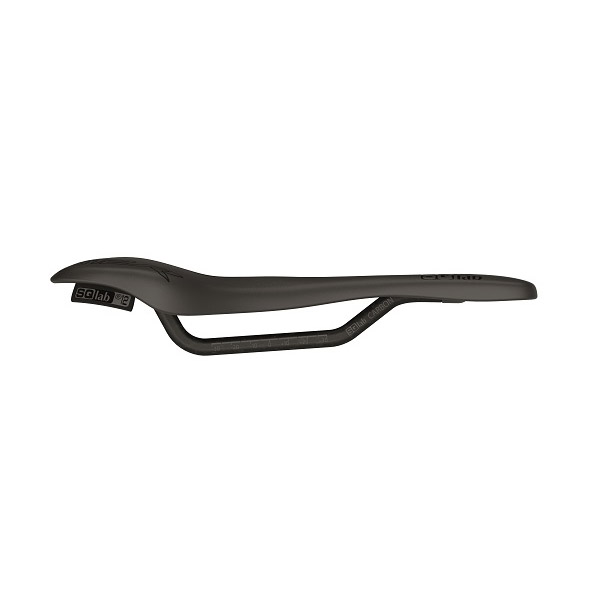

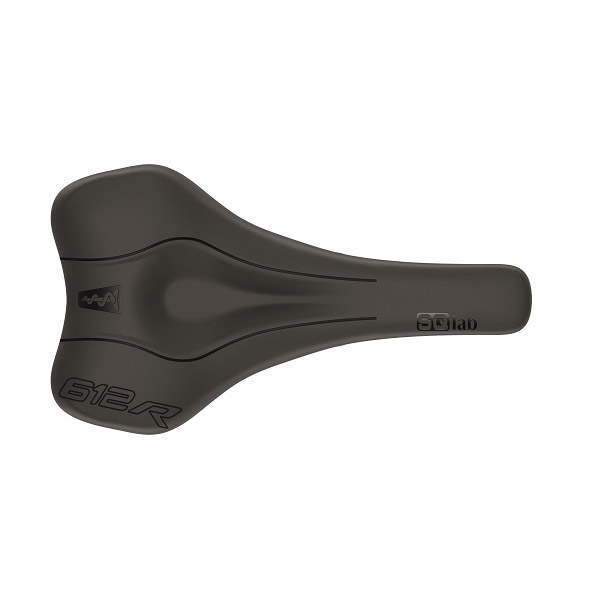

612 Ergowave R Shorter - Narrower Lighter - Faster

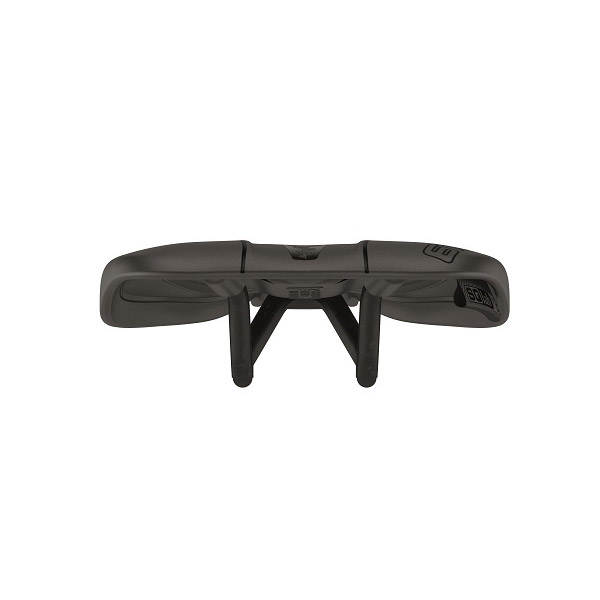

ERGOWAVE® Sleek rear The raised rear gives more grip and better power transmission. A big advantage is on straight roads and especially uphill.
Shape Narrower The stronger narrower mid-section and the narrow saddle nose gives more legroom.
Lightweight Weight and flex optimized from 125 g More longitudinal stiffness and perfectly coordinated material flex to the side mean more comfort with less weight at the same time. In addition, this model is equipped with Carbon rails. The cover is primarily extremely light, but also abrasion-resistant and grippy. The padding is closed cell and highly minimized.
freedom Extended Dip The slight depression in the middle of the saddle has been lengthened for a very sporty sitting position to reduce the pressure on the sensitive structures of the perineal area.
Saddle Width System Perfect fit The requirement for maximum performance is a fit that is perfectly tailored to the athlete. Available widths: 12 / 13 / 14 / 15 cm
Sit bone measurement
Shorter - Narrower - Lighter - Faster
More performance based ergonomics from 125 g.
The raised rear gives more grip and better power transmission.
A big advantage is on straight roads and especially uphill.
The stronger narrower mid-section and the narrow saddle nose gives more legroom.
The proven SQlab ERGOWAVE® form relieves the soft tissue area and prevents energy- consuming bad posture.
The saddle shell is weight and flex optimized down to the last detail.
More longitudinal stiffness and perfectly coordinated material flex to the side mean more comfort with less weight at the same time.
The cover is extremely light but also abrasion-resistant and non-slip. The padding is closed-cell and strongly minimized.
The comfort comes from the shape and the flex behavior between rail - shell - foam, which is coordinated as an overall system.
Racers combine the saddle with the SQ-Short One12

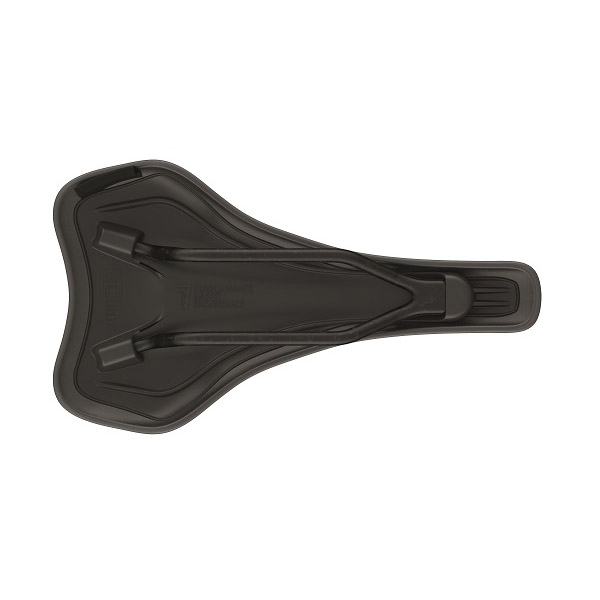

ARTICLE NUMBER 57230-2033 AREA OF USE Road Race WEIGHT(S) IN G approx. 125 / 128 / 130 / 135 LENGTH(S) IN MM approx. 252 EFFECTIVE HEIGHT IN MM approx. 49 SIZE(S) IN CM (EFFECTIVE SADDLE WIDTH) 12 / 13 / 14 / 15 ACTIVE TECHNOLOGY No MATERIAL RAILS Carbon (high oval 7mm x 9,6mm - solid) MATERIAL BASE Carbon Fibre reinforced Polyamide Compound (PA12 + CF) MATERIAL PADDING Superlight Foam MATERIAL COVER Superlight Microfibre HARDNESS IN SQ-SHORE 60 RELIEF OF PERINEAL AREA IN % 63 MAXIMUM LOAD IN KG 90 MAXIMUM TORQUE IN NM 18 E-BIKE READY Yes DIN/ASTM CATEGORIES 4, 6 / 4 GENDER Unisex
