Recommended sitting position for this saddle:

Form, function and comfort upgrade for long uphills and trail descents on the mountain bike.
:grayscale(false):quality(10):blur(20))
:grayscale(false):quality(10):blur(20))
»The Ergo manufacturer's step concept works perfectly: The perineum is completely relieved here - even on climbs. ... The rear step creates a lot of support, the active function provides noticeable damping and the lateral flex relaxes the back.«
:grayscale(false):quality(10):blur(20))
Peak Performance on Every Trail
Built for long rides with comfort on every terrain
The 611 saddle for maximum performance on the trail: comfort and support on uphills and downhills.
:grayscale(false):quality(10):blur(20))
Step Saddle Shape
:grayscale(false):quality(10):blur(20))
Flat nose
Read more:grayscale(false):quality(10):blur(20))
Saddle Dip
:grayscale(false):quality(10):blur(20))
individual fit
Saddle width system
A perfectly tailored fit for the mountain biker is a prerequisite for maximum comfort, even off-road. Available widths: 13 / 14 / 15 / 16 cm
Find your fit
:grayscale(false):quality(10):blur(20))
Relief and Support
active-technology and ERGOWAVE®
The 611 MTB saddle features a stepped design that evenly distributes body weight onto the sit bones. The lower saddle nose and central dip relieve sensitive areas, ensuring balanced pressure distribution. Additionally, the Active Technology allows lateral saddle movement during pedaling, mobilizing and relieving the spinal discs.
:grayscale(false):quality(10):blur(20))
Perfect Support & Optimal Pressure Relief
Step Saddle Shape
With its wave-shaped design and raised rear, the saddle provides perfect support and even pressure distribution, offers relief and significantly improving power transfer to the pedals, especially during challenging uphills and fast descents.

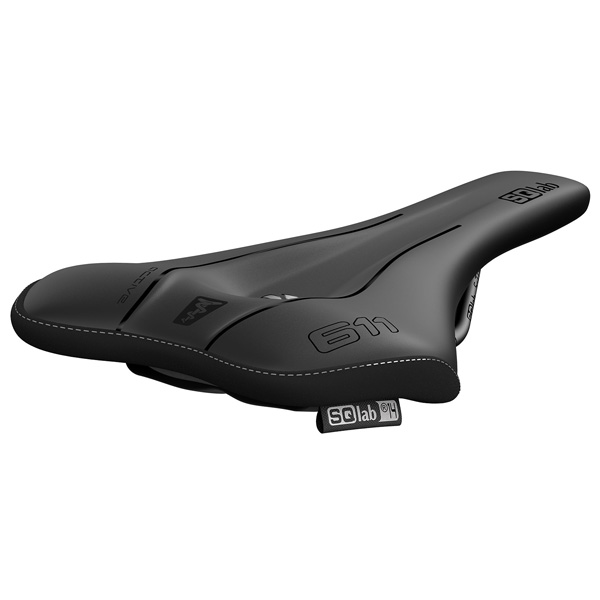

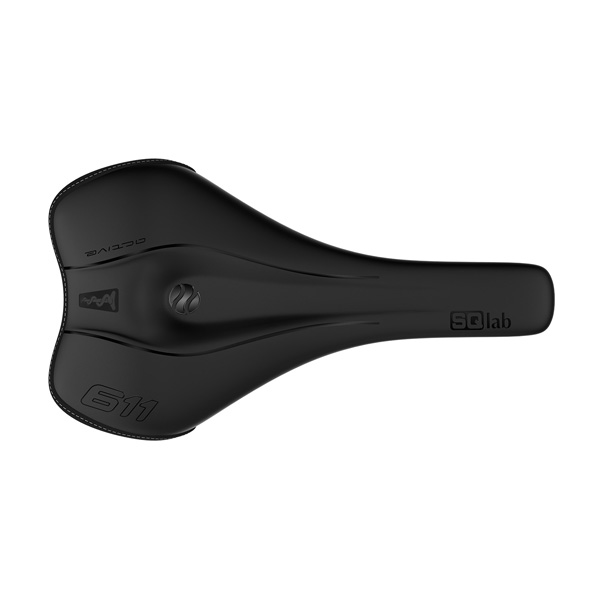

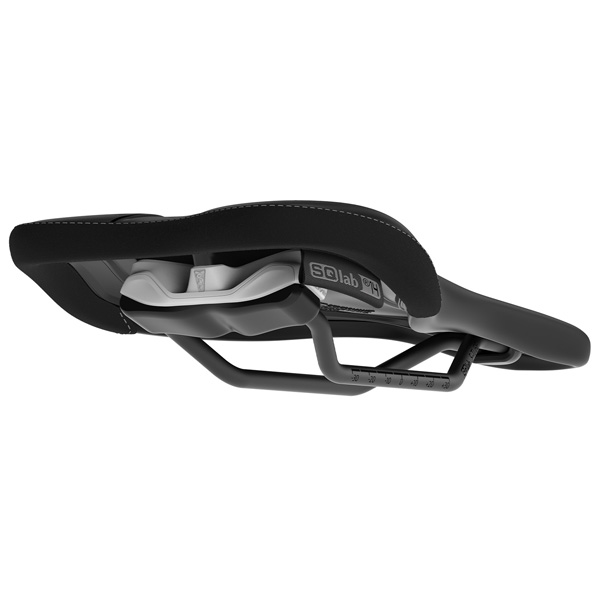

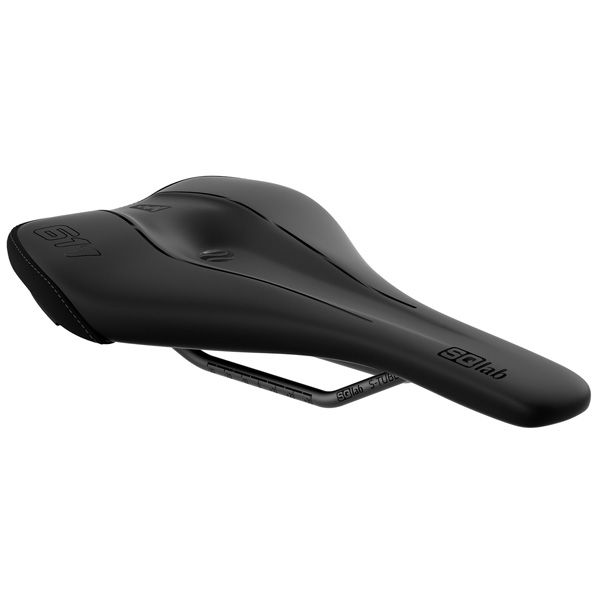

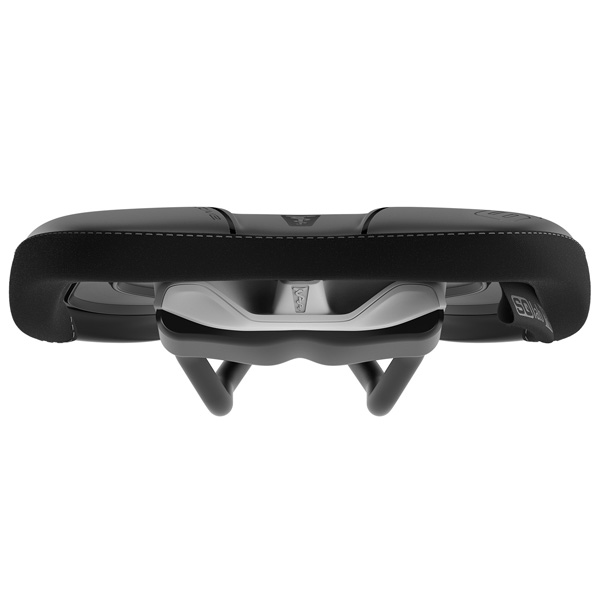

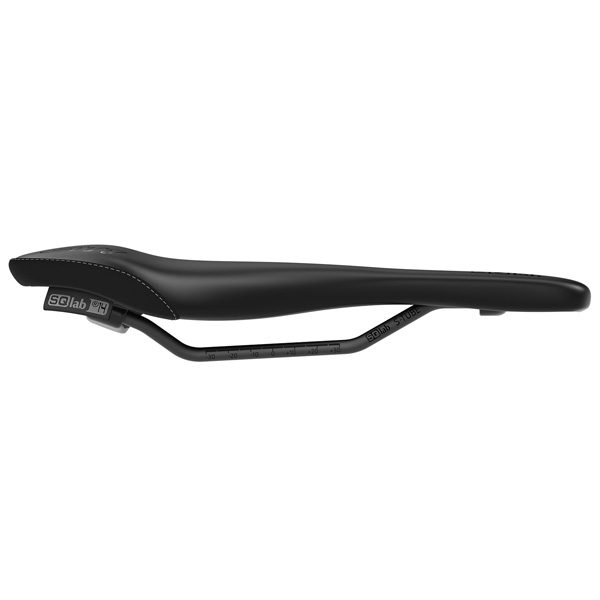

The 611 ERGOWAVE® active 2.1 is designed to meet the requirements of all-mountain and enduro riding. The saddle's wave-like shape and raised rear ensure perfect rearward support and optimum pressure distribution down to the deep structures of the body, which significantly improves power transmission to the pedal. The lowered nose, in combination with the recess in the middle, creates more space and clearance for the perineal area for both women and men. The padding material has been specially adapted to the requirements of MTB and has more damping in rough terrain. High-quality Kevlar cover protects the particularly stressed areas on the saddle. The new 611 ERGOWAVE® active 2.1 has been given a form, function and comfort upgrade for long uphills and trail descents on the mountain bike. The 611 ERGOWAVE® active 2.1 is equipped with the new active technology with a softer and lighter movement with less weight. The SQlab active saddle technology means that the saddle follows the pedalling movement, which increases comfort, mobilises the intervertebral discs and minimises pressure on the sit bones.
ARTICLE NUMBER | 57230-2024 |
---|
AREA OF USE | Trail & Down Country |
---|
WEIGHT(S) IN G | approx. 235 / 237 / 249 / 254 |
---|
LENGTH(S) IN MM | approx. 280 |
---|
EFFECTIVE HEIGHT IN MM | approx. 51 |
---|
SIZE(S) IN CM (EFFECTIVE SADDLE WIDTH) | 13 / 14 / 15 / 16 |
---|
ACTIVE TECHNOLOGY | Yes - Sport |
---|
MATERIAL RAILS | S-Tube (light stainless steel - hollow) |
---|
MATERIAL BASE | Glass Fibre reinforced Polyamide Compound (PA12 + GF) |
---|
MATERIAL PADDING | Superlight Foam |
---|
MATERIAL COVER | Impact Resistant Microfibre |
---|
HARDNESS IN SQ-SHORE | 55 |
---|
RELIEF OF PERINEAL AREA IN % | 65 |
---|
MAXIMUM LOAD IN KG | 100 |
---|
MAXIMUM TORQUE IN NM | 18 |
---|
E-BIKE READY | Yes |
---|
DIN/ASTM CATEGORIES | 4 |
---|
GENDER | Unisex |
---|
