ERGOLUX® stands for maximum comfort

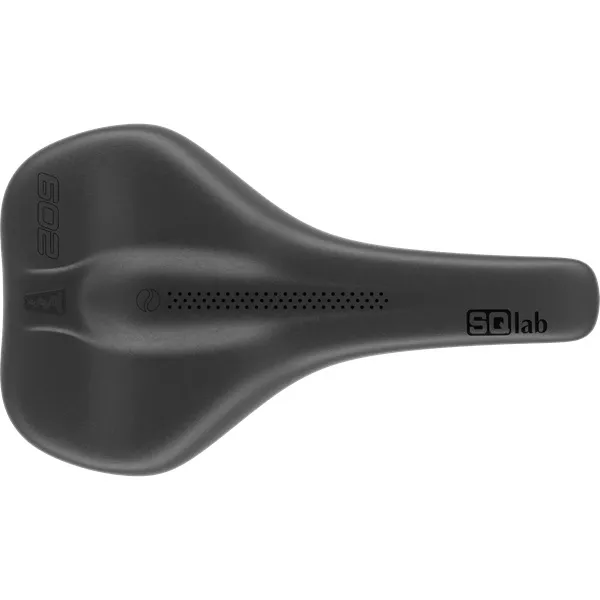

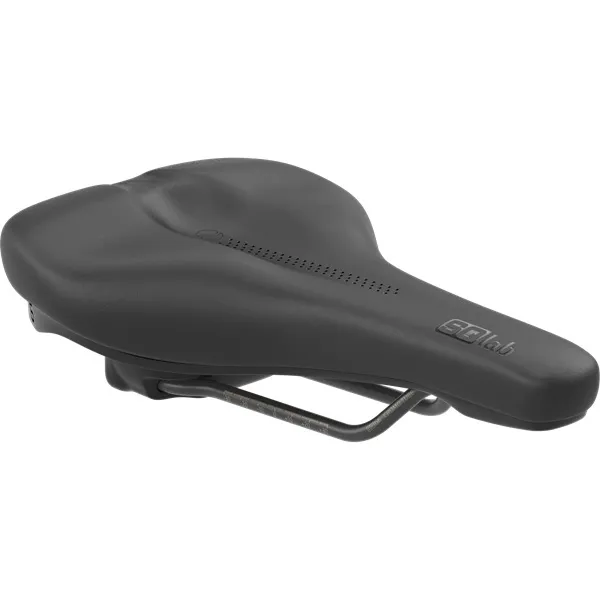

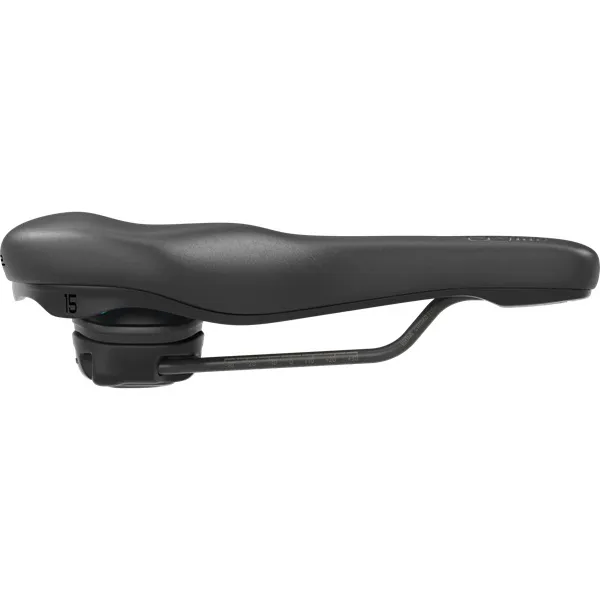

The 602 ERGOLUX® active 2.1 is designed for a more upright riding position. Its shape is optimized for long-distance touring and trekking, offering high comfort with every pedal stroke. Ideal for riders who value support and pressure distribution on relaxed tours and daily commutes.
:grayscale(false):quality(10):blur(20))
Saddle Width System
perfect fit
A prerequisite for maximum comfort and relief is the matching saddle width, so that it is ensured that your sit bones lie fully on the saddle. Because only then, the sensitive perineal area in men and the usually lower pubic arch in women can be properly relieved.
ERGOLUX®
pressure relief
The lower saddle nose in combination with the slight depression in the middle relieves the sensitive perineal area. The flat, only very slightly curved shape of the saddle nose results in a maximum contact surface with correspondingly less pressure.
:grayscale(false):quality(10):blur(20))

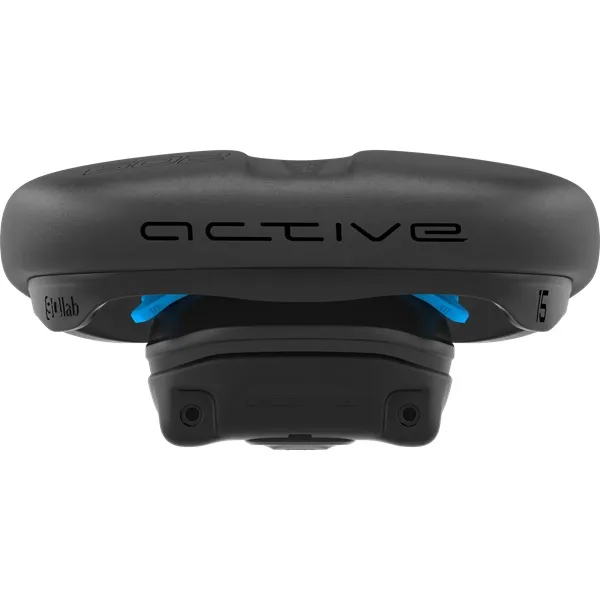

active-Technology
Back-friendly
The SQlab active saddle technology enables a physiological co-movement of the pelvis. Spinal discs and facet joints can thus be relieved. In particular, the mobilization of the spinal discs is clearly noticeable. SQlab introduces the next evolutionary stage of active technology. The active movement 2.1 can be adjusted via the switch function as of now in two stages and this is child's play.
ARTICLE NUMBER | 57230-2014 |
---|
BAR CODE | 4062695002192, 4062695002208, 4062695002215, 4062695002222 |
---|
SIZE(S) IN CM (EFFECTIVE SADDLE WIDTH) | 14 / 15 / 16 / 17 |
---|
AREA OF USE | Trekking Comfort |
---|
WEIGHT(S) IN G | approx. 470 / 480 / 490 / 500 |
---|
LENGTH(S) IN MM | approx. 282 |
---|
EFFECTIVE HEIGHT IN MM | approx. 75 |
---|
ACTIVE TECHNOLOGY | Yes - Comfort |
---|
MATERIAL RAILS | CrMo (solid) |
---|
MATERIAL BASE | Polypropylene Compound (PP) |
---|
MATERIAL PADDING | Light Foam |
---|
MATERIAL COVER | Durable Microfibre |
---|
HARDNESS IN SQ-SHORE | 45 |
---|
RELIEF OF PERINEAL AREA IN % | 65 |
---|
MAXIMUM LOAD IN KG | 130 |
---|
MAXIMUM TORQUE IN NM | 18 |
---|
E-BIKE READY | Yes |
---|
DIN/ASTM CATEGORIES | 2 |
---|
GENDER | Unisex |
---|
