Recommended sitting position for this saddle:

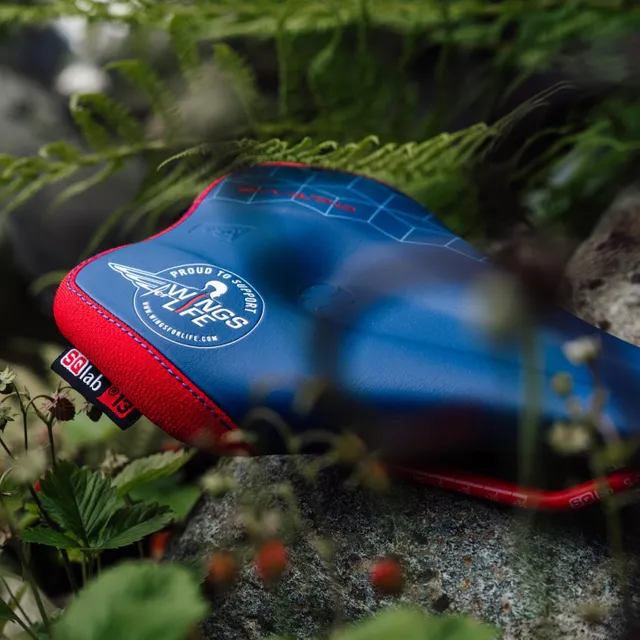

611 ERGOWAVE® active 2.1 ltd. Wings for Life
"Wings for Life is a non-profit foundation for spinal cord research that aims to make paraplegia curable."
We support the research foundation "Wings for Life" with the back-friendly, limited edition "611 ERGOWAVE® ltd. Wings for Life " (www.wingsforlife.com).
:grayscale(false):quality(10):blur(20) "_DSC5056")
611 ERGOWAVE® active 2.1 ltd. Wings for Life
"Wings for Life is a non-profit foundation for spinal cord research that aims to make paraplegia curable."
We support the research foundation "Wings for Life" with the back-friendly, limited edition "611 ERGOWAVE® ltd. Wings for Life " (www.wingsforlife.com).
For every saddle sold, we donate 10 euros directly to the foundation, which finances and supports worldwide research projects to heal injured spinal cords.
:grayscale(false):quality(10):blur(20) "sqlab.produkte.sattel.611.ltd.wfl")
Saddle Width System
Fit
Prerequisite for maximum comfort even off-road is the perfect fit for the mountain biker. Available widths: 13 / 14 / 15 / 16 cm
Sit bone measurement
:grayscale(false):quality(10):blur(20) "sqlabblauermtbsattel611ergowaveactive21ltdwingsforlifePT04")
ERGOWAVE®
Support
The saddle provides through its wave-like shape and the raised tail for the perfect support to the rear and an optimal pressure distribution to the deep structures of the body whereby the power transmission to the pedal is significantly improved.
:grayscale(false):quality(10):blur(20) "sqlabblauermtbsattel611ergowaveactive21ltdwingsforlifePT02")

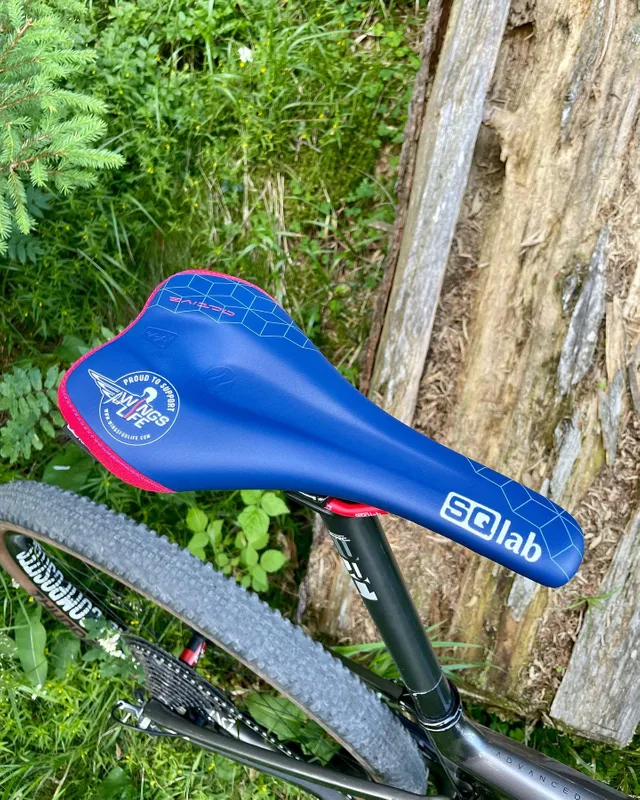

Shape
Free space
The lower saddle nose, in combination with the dip in the middle, creates more space and freedom for the sensitive perineal area in women and men alike.
:grayscale(false):quality(10):blur(20) "sqlabblauermtbsattel611ergowaveactive21ltdwingsforlifePT05")
active System
Relief of the intervertebral discs
Equipped is the 611 ERGOWAVE® active ltd. Wings for Life with the new active technology with a softer and lighter movement with less weight. SQlab active saddle technology allows the saddle to follow the pedaling movement, comfort increases, the intervertebral discs are mobilized and the pressure on the sit bones is minimized.

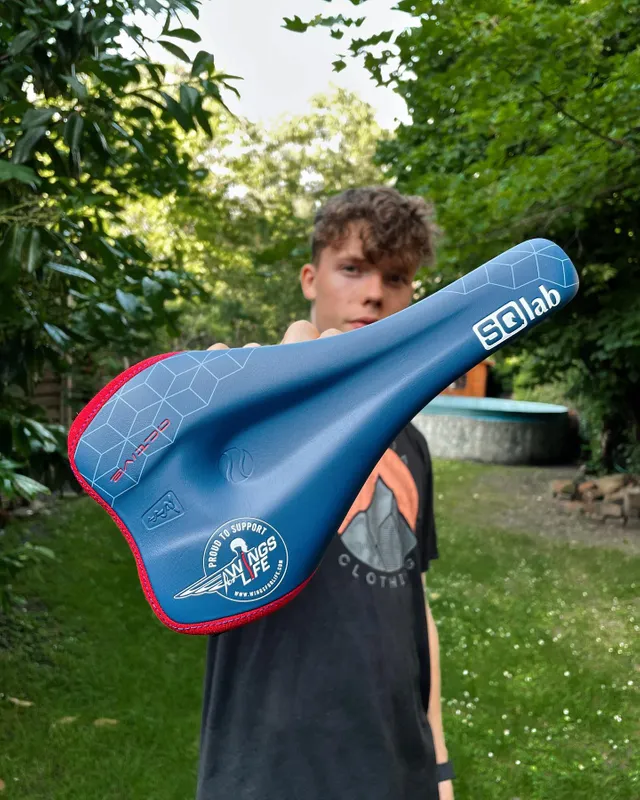

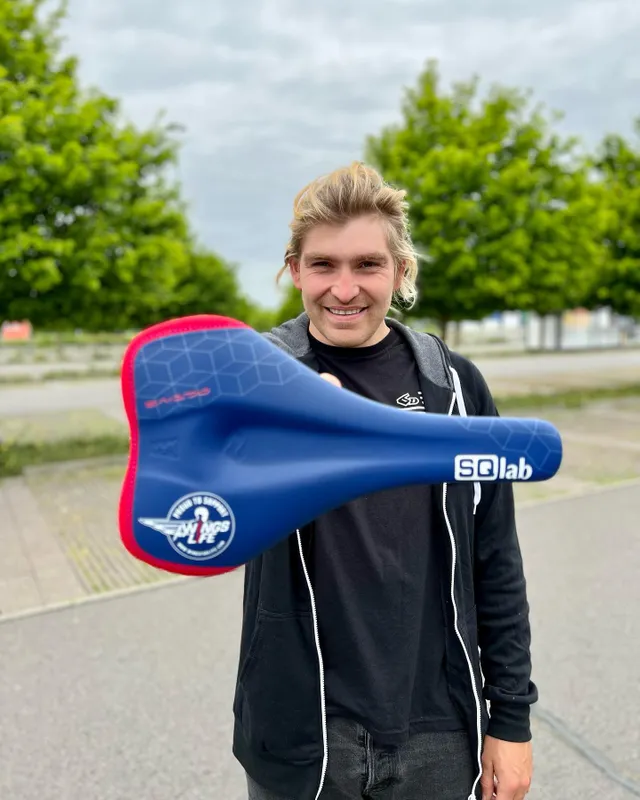

Show your support #sqlab #wingsforlife
"Wings for Life is a non-profit foundation for spinal cord research that aims to make paraplegia curable." We support the research foundation "Wings for Life" with the back-friendly, limited edition "611 ERGOWAVE® ltd. Wings for Life " (www.wingsforlife.com). For every saddle sold, we donate 10 euros directly to the foundation, which finances and supports worldwide research projects to heal injured spinal cords.
The 611 ERGOWAVE® ® ltd. Wings for Life is made for the requirements of All-Mountain and Enduro. The saddle's wave-like shape and raised rear ensure perfect rearward support and optimum pressure distribution down to the deep structures of the body, which significantly improves power transmission to the pedal. The lowered nose, in combination with the recess in the middle, creates more space and clearance for the perineal area for both women and men.The padding material has been specially adapted to the requirements of MTB and has more damping in rough terrain. High-quality Kevlar cover protects the particularly stressed areas on the saddle. The 611 ERGOWAVE® ® ltd. Wings for Life with the new active technology with a softer and lighter movement with less weight. The SQlab active saddle technology means that the saddle follows the pedalling movement and the comfort is increased, the intervertebral discs are mobilised and the pressure on the sit bones is minimised.
| ARTICLE NUMBER | 57230-2062 |
|---|
| AREA OF USE | MTB Trail & Down Country |
|---|
| WEIGHT(S) IN G | approx. 237 / 240 / 243 / 246 |
|---|
| LENGTH(S) IN MM | approx. 280 |
|---|
| SIZE(S) IN CM (EFFECTIVE SADDLE WIDTH) | 13 / 14 / 15 / 16 |
|---|
| ACTIVE TECHNOLOGY | Yes - Sport |
|---|
| MATERIAL RAILS | S-Tube (light metal alloy - hollow) |
|---|
| MATERIAL BASE | Glass Fibre reinforced Polyamide Compound (PA12 + GF) |
|---|
| MATERIAL PADDING | Superlight Foam |
|---|
| MATERIAL COVER | Impact Resistant Microfibre |
|---|
| HARDNESS IN SQ-SHORE | 55 |
|---|
| MAXIMUM LOAD IN KG | 100 |
|---|
| MAXIMUM TORQUE IN NM | 18 |
|---|
| E-BIKE READY | Yes |
|---|
| DIN/ASTM CATEGORIES | 4 |
|---|
| GENDER | Unisex, because auf "Step saddle concept" and "Saddlewidth system" |
|---|
